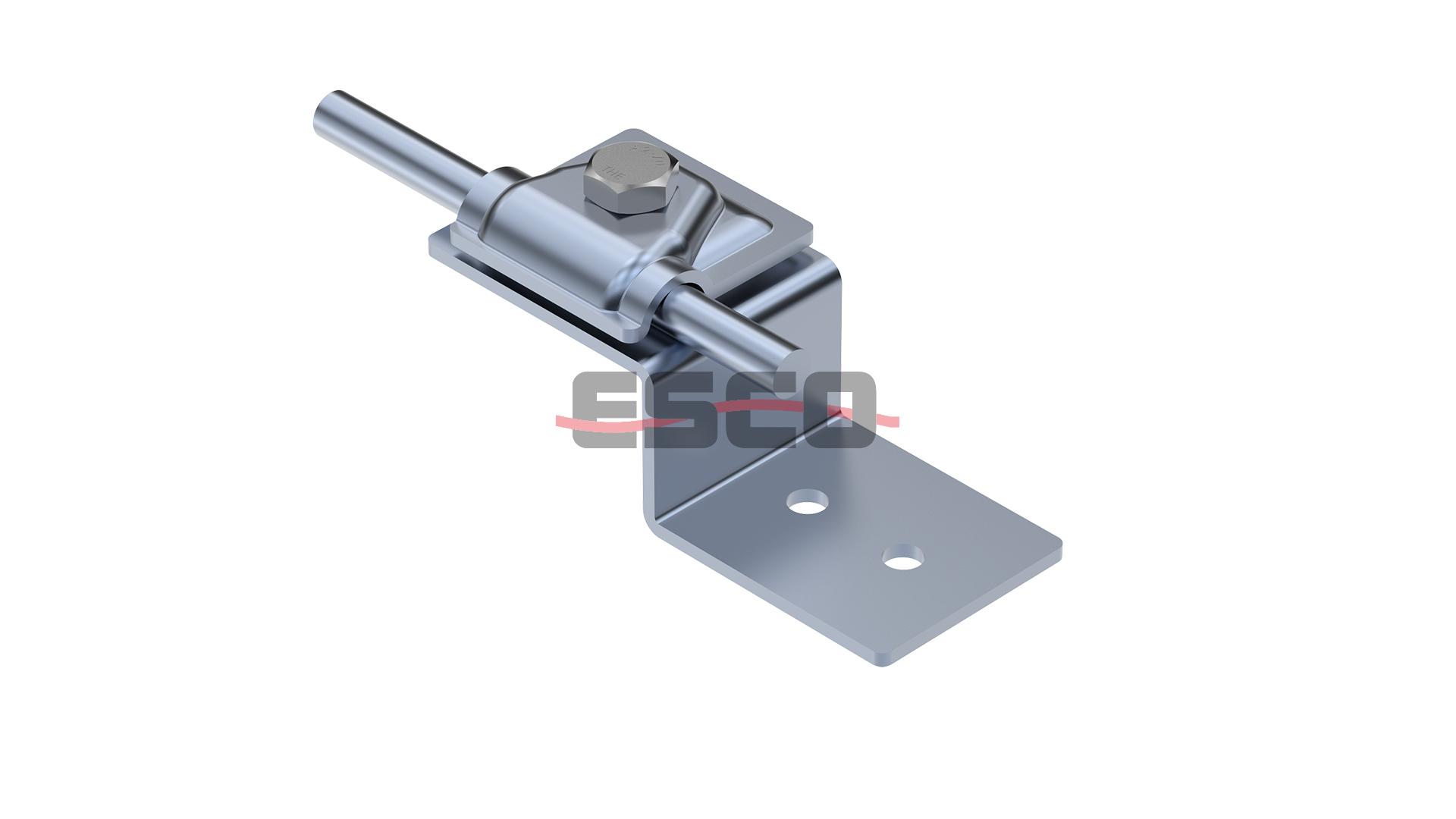

MV Clamp

MV Clamp

Product code: ET.A.TKP.3570.835E and 6 variants
Material Type: Aluminum
Conductor Type: Circular
Part No: ET.A.TKP.3570.835E
Material: Al
Conductor Size: 35mm²
Weight: 0,06/Ad
Weight 2: 0,06/Pc
Conductor Size 2: 70 mm²

Call now WhatsApp

Pricing is quoted according to project scope, size and quantity.

Technical specifications

7 product codes

MV Clamp — Technical specifications
Material Type	Conductor Type	Part No	Material	Conductor Size	Conductor Size 2	Coating Type	Weight 2	Quote
Aluminum	Circular	ET.A.TKP.3570.835E	Al	35mm²	70 mm²		0,06/Pc
Aluminum	Circular	ET.A.TKP.3570.835SS	Al	35mm²	70 mm²		0,06/Pc
Copper	Circular	ET.C.TKP.3570.835E	Cu	35mm²	70 mm²		0,13/Pc
Copper	Circular	ET.C.TKP.3570.835SS	Cu	35mm²	70 mm²		0,13/Pc
Steel	Circular	ET.FD.TKP.3570.835E	StZn	35mm²	70 mm²	Hot Dip Galvanized	0,12/Pc
Steel	Circular	ET.FD.TKP.3570.835SS	StZn	35mm²	70 mm²	Hot Dip Galvanized	0,12/Pc
Steel	Circular	ET.FD.TKPZ.3570.835E	StZn	35mm²	70 mm²	Hot Dip Galvanized	0,12/Pc

Product description

50mm²-70mm² Aluminum Conductor Clamp
