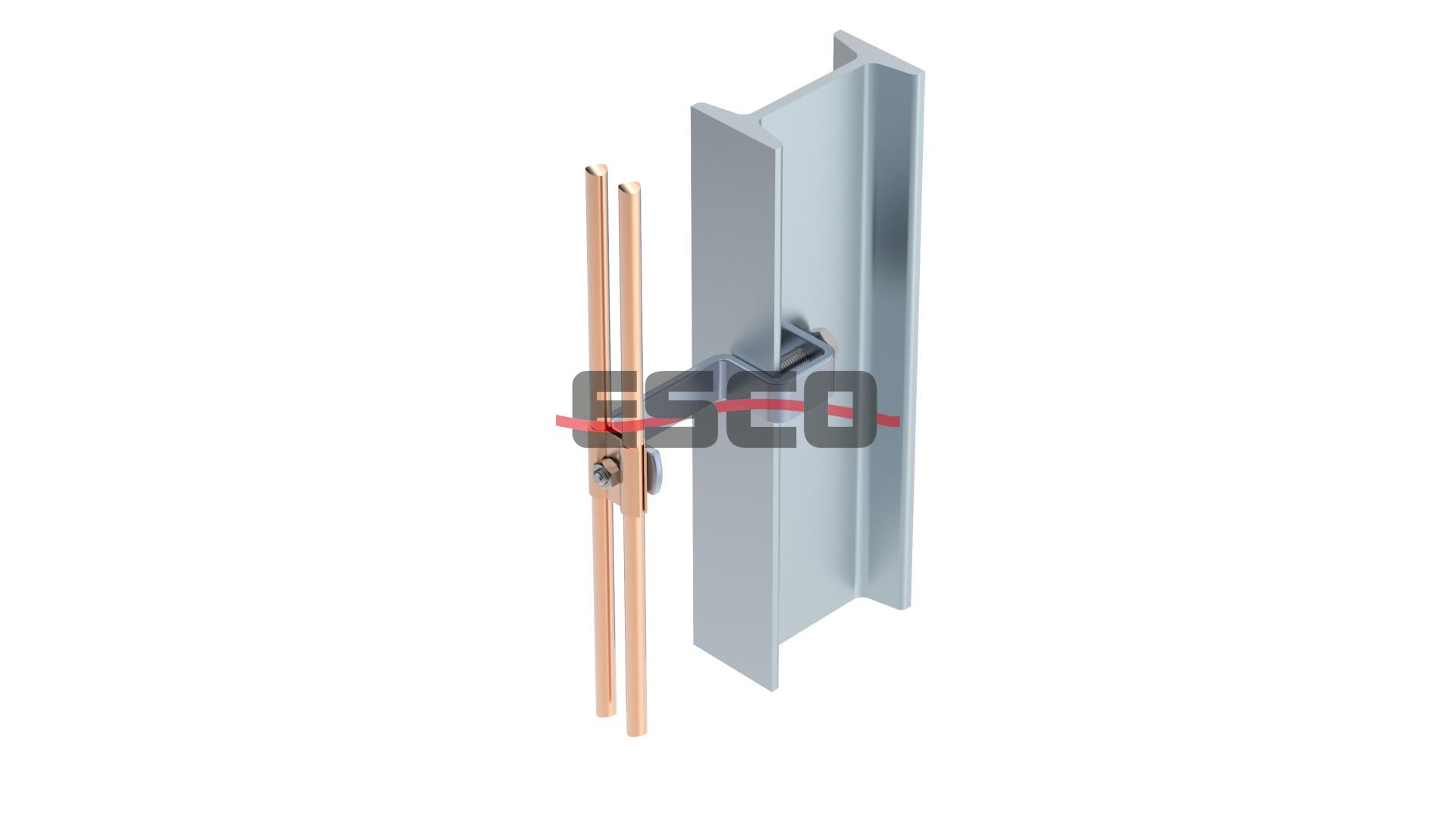

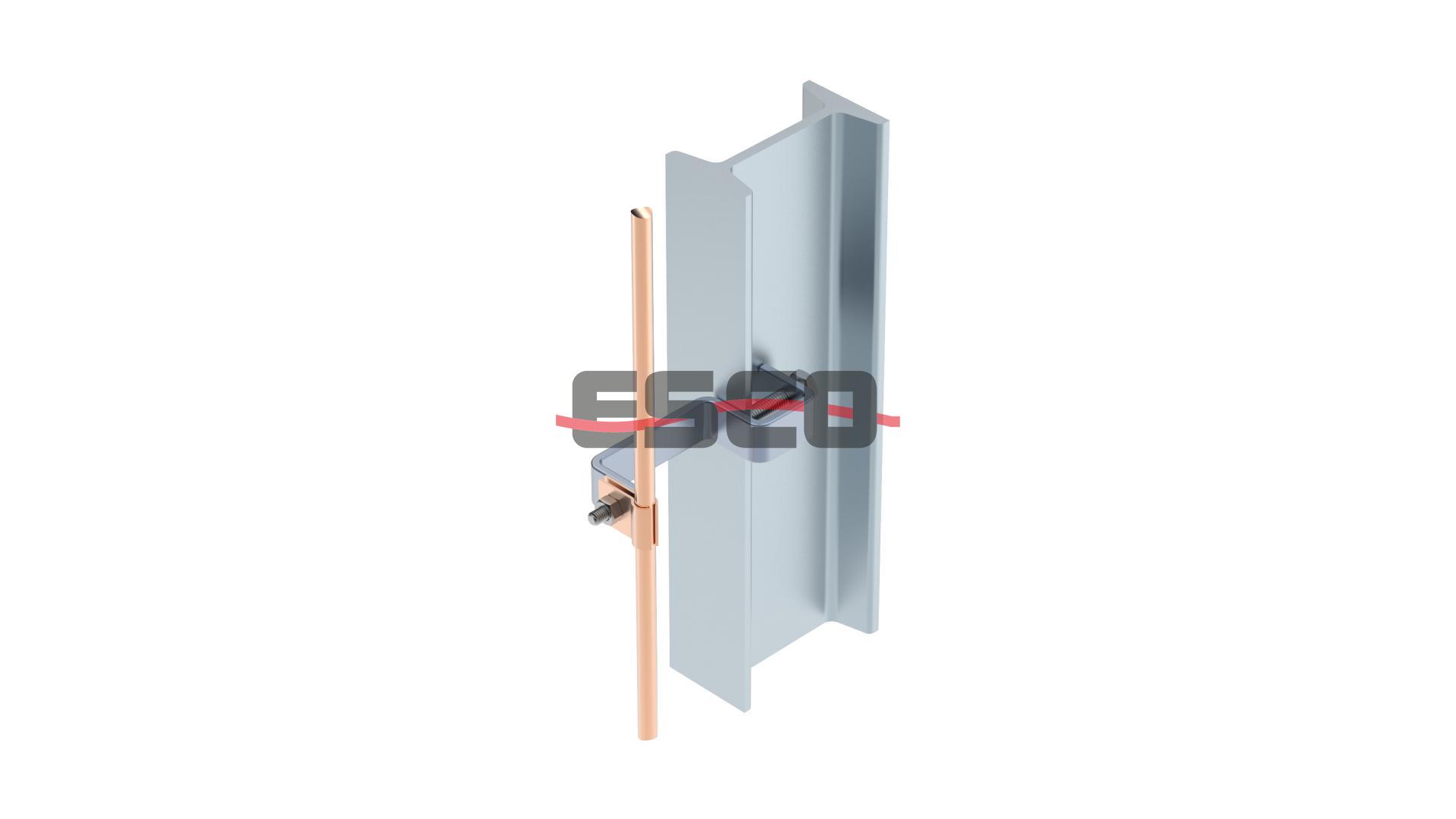

- Metalwork Bond
1x120mm² Metalwork Clamp
| Part No | Material | Conductor Size | Weight | Spanner | Screw Diameter | Screw Size | Quantity | Actions |
|---|---|---|---|---|---|---|---|---|
| EY.FDC.İKP.1120.620E | Cu | 1x120mm² | 0,15/Pc | 13.0 mm-10.0 mm | M.6x20 | M.8x30 |
|
|
| EY.FDC.İKP.150.620E | Cu | 1x50mm² | 0,13/Pc | 13.0 mm-10.0 mm | M.6x20 | M.8x30 |
|
|
| EY.FDC.İKP.150.620SS | Cu | 1x50mm² | 0,15/Pc | 13.0 mm-10.0 mm | M.6x20 | M.8x30 |
|
|
| EY.FD.İKP.150.620E | StZn | 1x50mm² | 0,13/Pc | 13.0 mm-10.0 mm | M.6x20 | M.8x30 |
|
|
| EY.FDA.İKP.150.620E | Al | 1x50mm² | 0,12/Pc | 13.0 mm-10.0 mm | M.6x20 | M.8x30 |
|
|
| EY.FDC.İKP.170.620E | Cu | 1x70mm² | 0,14/Pc | 13.0 mm-10.0 mm | M.6x20 | M.8x30 |
|
|
| EY.FDC.İKP.195.620E | Cu | 1x95mm² | 0,14/Pc | 13.0 mm-10.0 mm | M.6x20 | M.8x30 |
|
|
| EY.FDC.İKP.250.620E | Cu | 2x50mm² | 0,15/Pc | 13.0 mm-10.0 mm | M.6x20 | M.8x30 |
|
|
| EY.FDC.İKP.250.620SS | Cu | 2x50mm² | 0,14/Pc | 13.0 mm-10.0 mm | M.6x20 | M.8x30 |
|
|
| EY.FD.İKP.250.620E | StZn | 2x50mm² | 0,13/Pc | 13.0 mm-10.0 mm | M.6x20 | M.8x30 |
|
|
| EY.FDA.İKP.250.620E | Al | 2x50mm² | 0,12/Pc | 13.0 mm-10.0 mm | M.6x20 | M.8x30 |
|

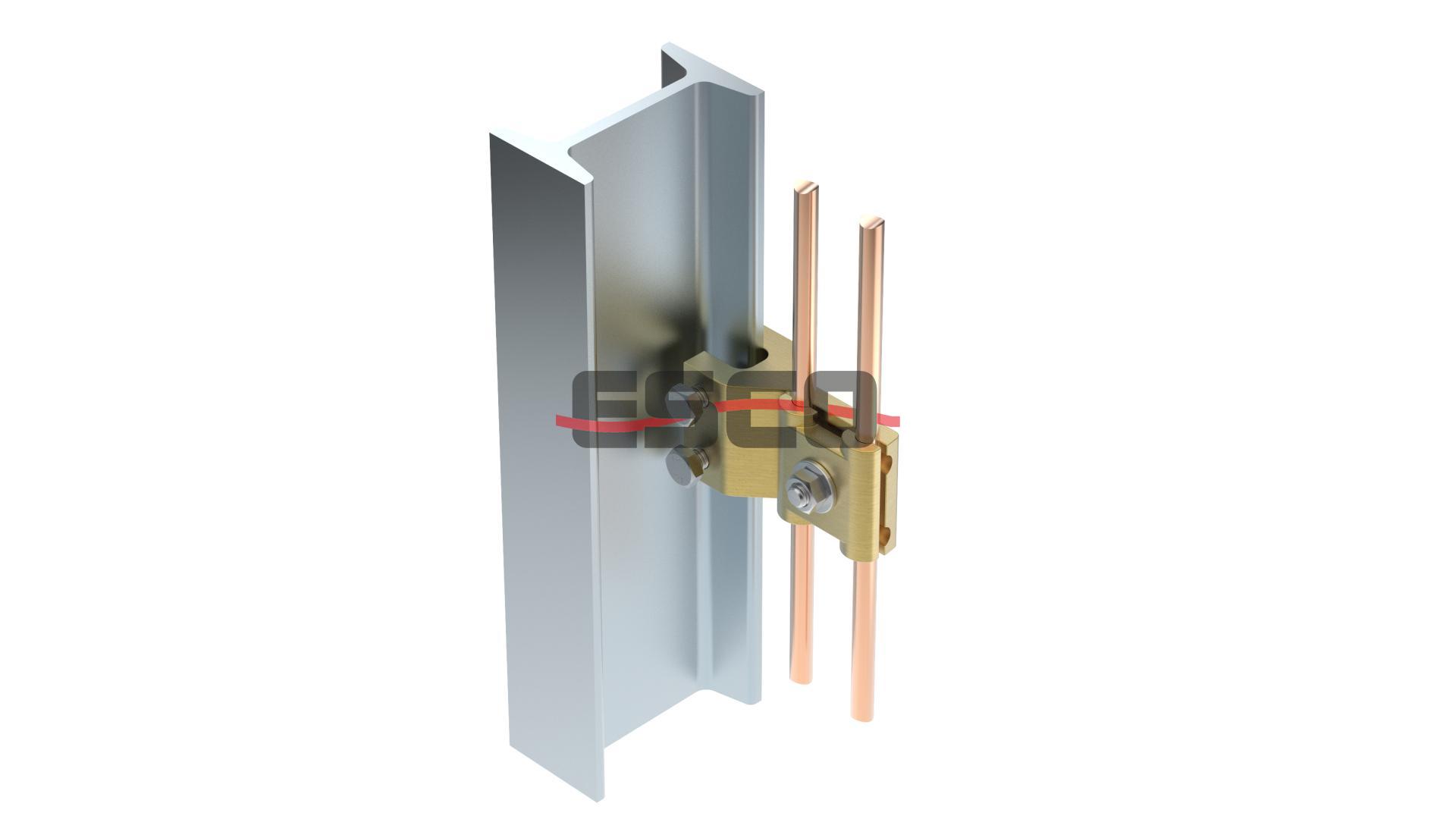

| Part No | Material | Conductor Size | Weight | Spanner | Screw Diameter | Screw Size | Quantity | Actions |
|---|---|---|---|---|---|---|---|---|
| EY.P.İKP.250 | CuPbZn | 2x50mm² | 0,40/Pc | 13.0 mm-17.0 mm | M.10x30 | M.8x25 |
|
|
| EY.A.İKP.250 | Al | 2x50mm² | 0,15/Pc | 13.0 mm-17.0 mm | M.10x30 | M.8x25 |
|
